Quadric processor flowcharts, diagram design and website refresh

Expanding brand implementation without heavy redesigns, audits or rebuilds

2025 -

Web Design
Brand Development
Wordpress
Technical Diagrams & Flowcharts

Focussed delivery and updates in the rapidly changing AI and automotive industry

This project is about what exists now, and present it in a way that is more representative of Quadric and their Chimera Processor family - and deliver quickly. My work covers a few main areas:

Design and implement an evolution to the brand
Understand and present complex product flow diagrams to bring inline with brand update
Website theme (Wordpress & Oxygen) update
Exhibition Stand artwork

Adding trust, legibility and consistency

There are some brand guidelines from a few years ago which have only ever been applied lightly, but also needed a fresh interpretation. Quadric need a step-reset as they continue to grow rapidly.

Graphic Highlightling the 4 processor groups of the Chimera Family — Processors tend to be represented much like symbols and icons, or heavily branded. We wanted something familiar, but also recognisable as the Quadric Chimera family.

Increasing legibility and clarity to highlight complex technical features

A new visual language for technical diagrams, flowcharts and data charts are now consistent and are recognisable. To be used across:

Slide decks with reveal stages
Website
Basis for animated walkthroughs

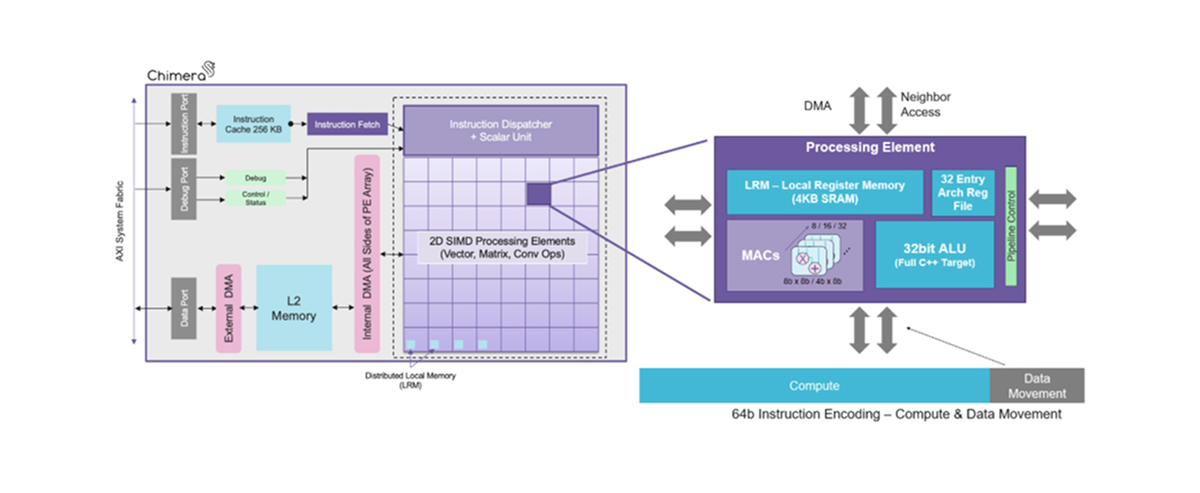

Archive version of Quadric GNPPU Diagram — Previously, contract and colours are mushy with inconsistent hierarchical labels

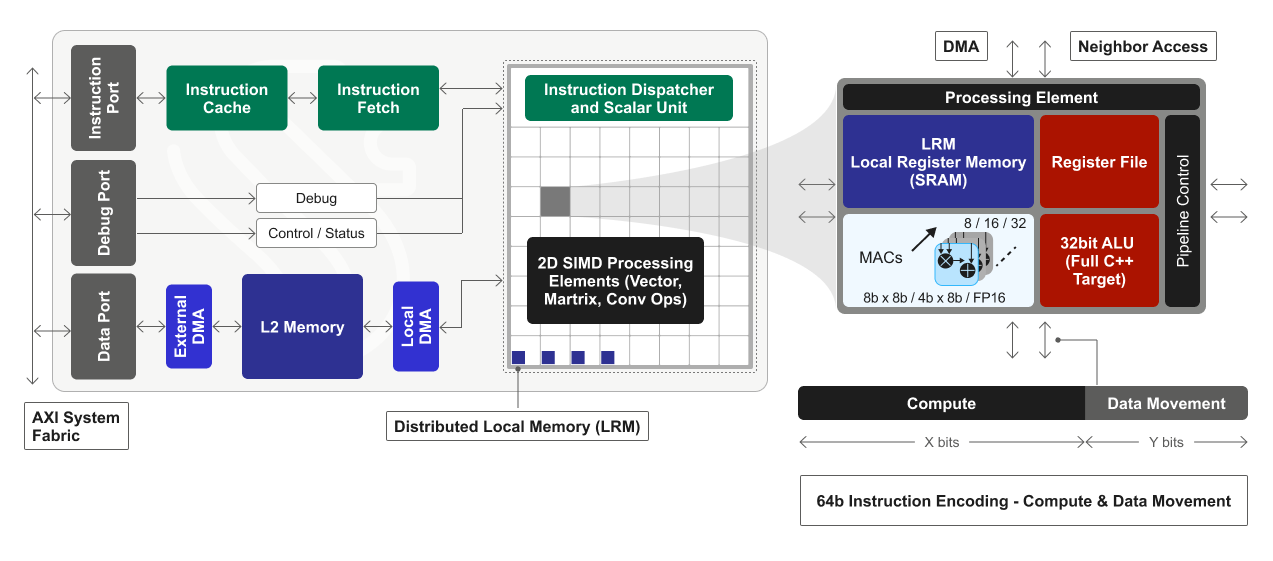

Quadric GPNPU Block Diagram New version — **New version**: GPNPU Block Diagram with clearer and decisive presentation

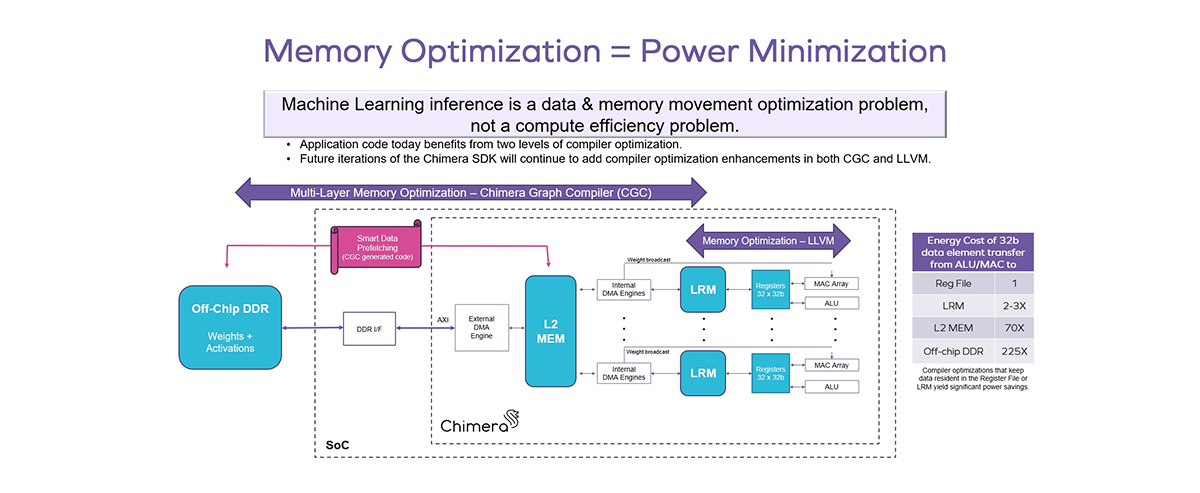

Quadric Memory Power Optimsiation, old Diagram — Before, all the information is here, but the main highlight features are not distinguished

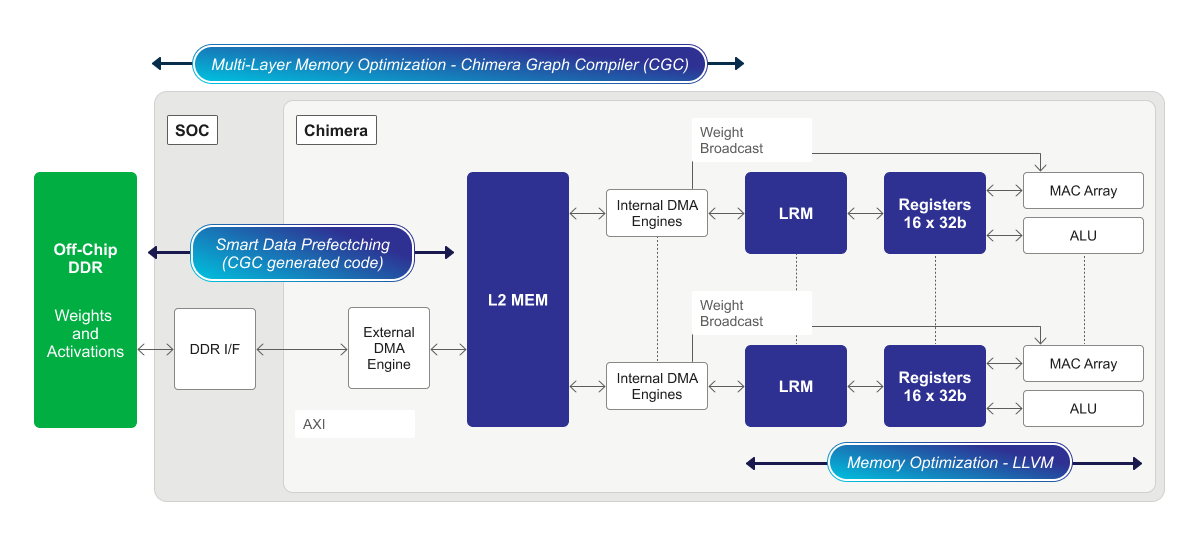

Quadric Memory Power Optimsiation, NEW Diagram — **New version**: Memory Power Optimisation is now more legible, with specific highlight areas, using new brand elements

Quadric website: Giving the content a new life

The Quadric website is a content heavy site that highlights all the product features, includes a Blog, Press Releases and details of events. The site was built on Wordpress and uses the Oxygen Theme editor.

My recommendation was to keep the content in place, and apply the update through the site - editing and updating where needed.

Before - Main product page

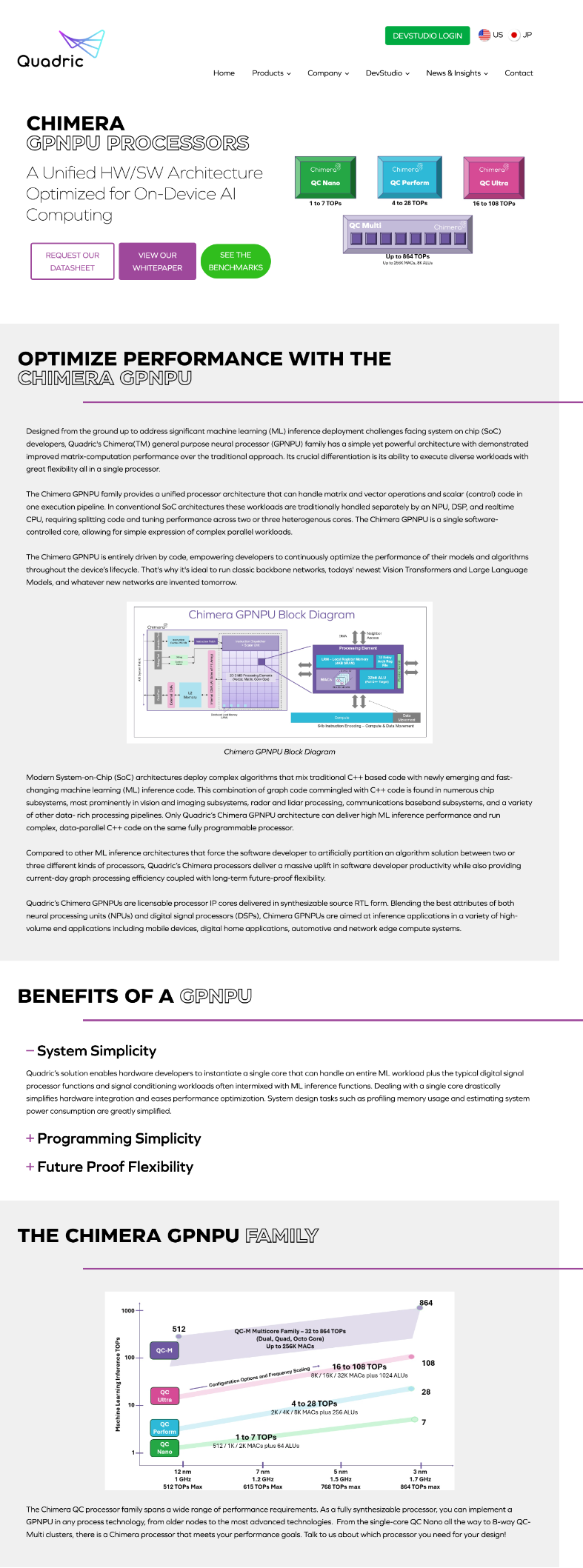

Screenshot of old version of Quadric Chimera Product Page — Desktop view: Quadric GPNPU Product page before step change update

Updated layout, typography and graphics within existing system:

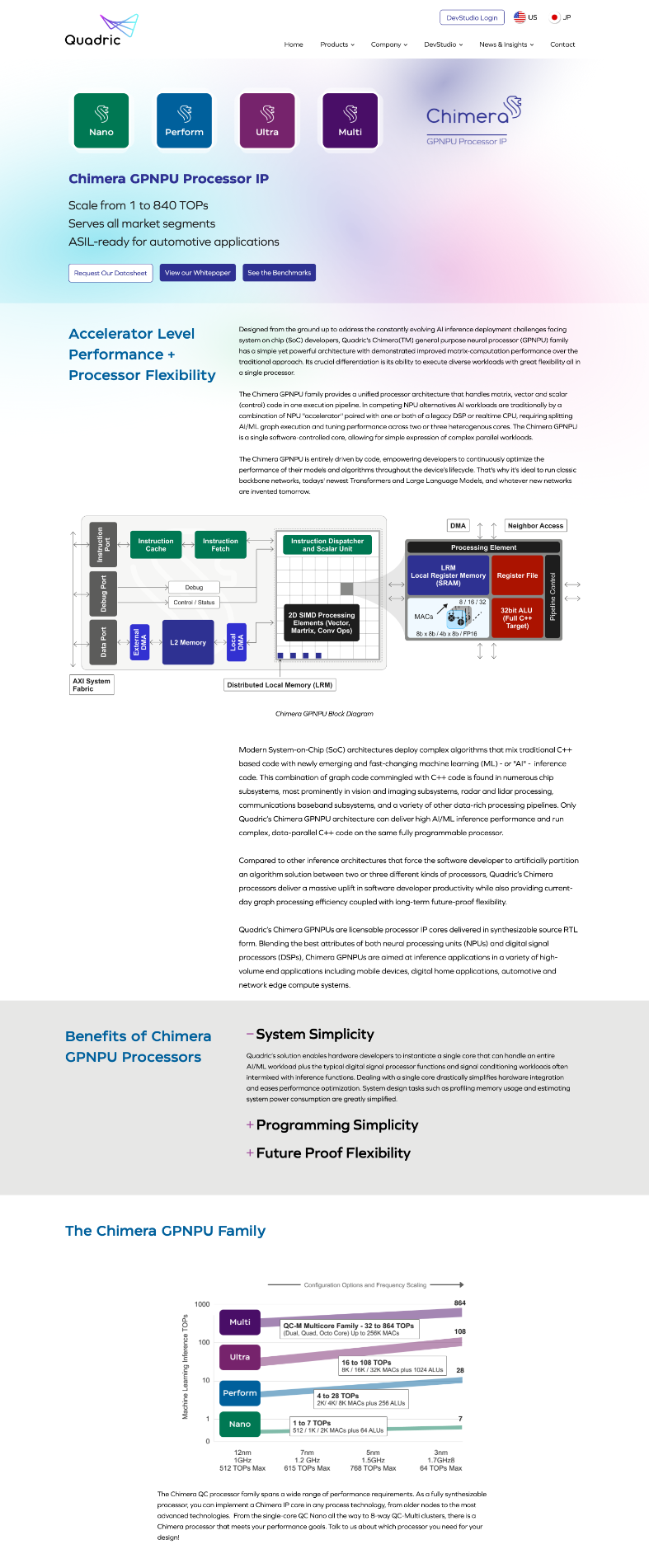

Screenshot of NEW version of Quadric Chimera Product Page — Desktop view: After the update, clearer hierarchies and typography with new diagrams and charts
